20HP VFD | UL508A Certified Enclosed Variable Speed Drive
The Schneider Electric 20 HP VFD Drive NEMA 3R Enclosure is a frequency inverter for three-phase 480 V asynchronous motors rated from 15 kW. The 20HP Enclosed VFD offers with its rugged design, compact size and integrated functions is specifically adapted to respond to numerous applications requiring an IP 55 degree of protection in a hostile environment. Comes in a NEMA 3R rated Enclosure with a Schneider Electric Remote Keypad and cooling fans.

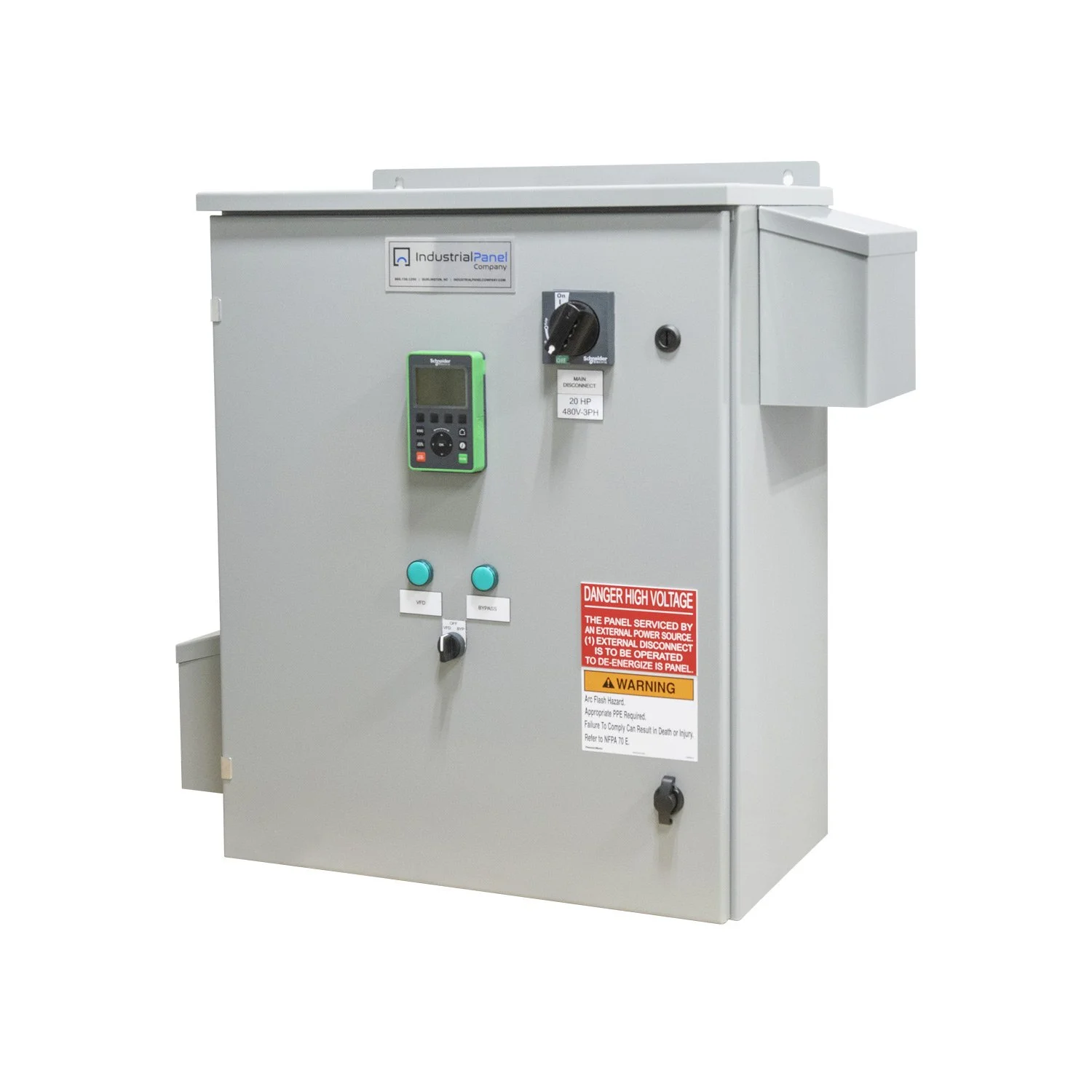

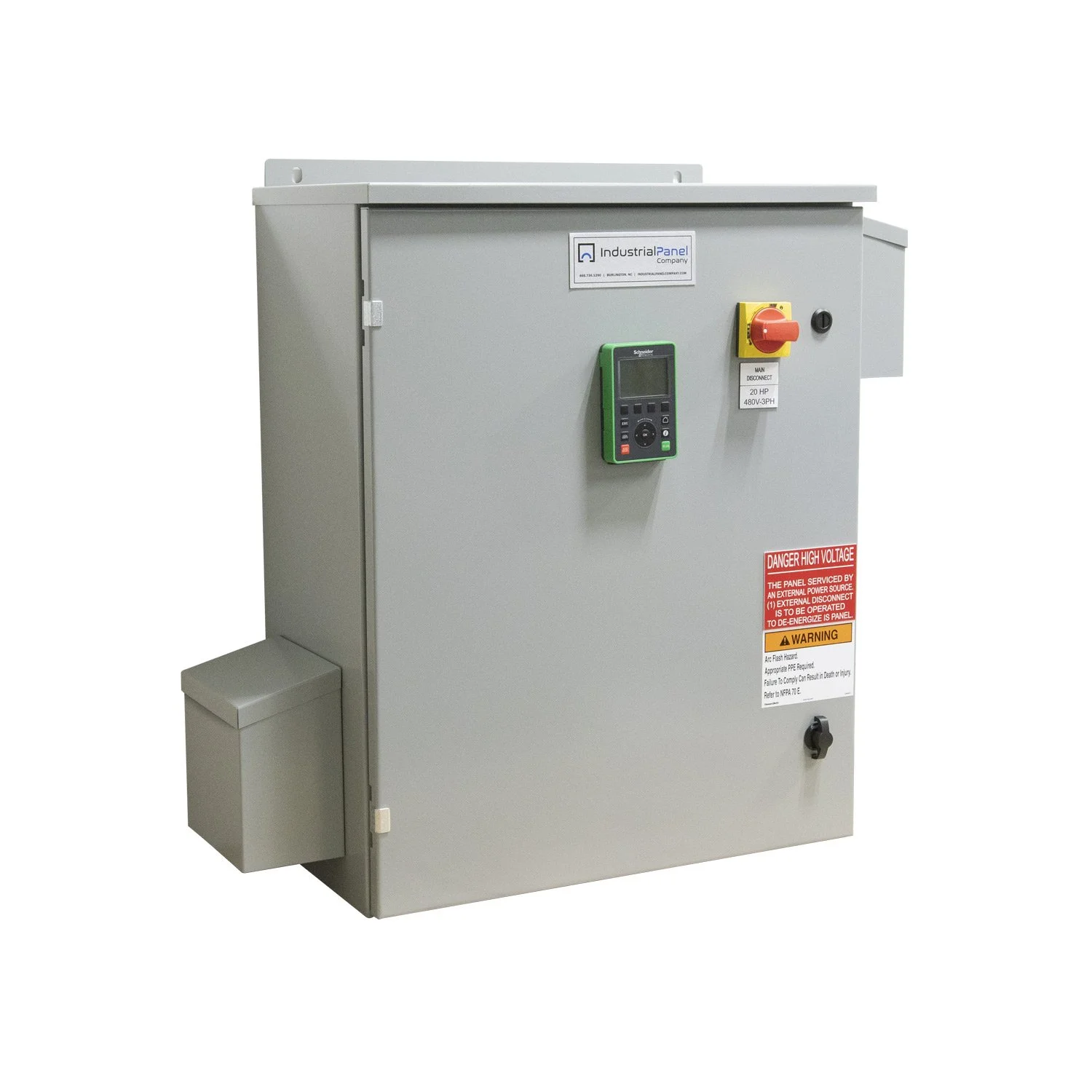

Choose during checkout these options on your 20HP EVFD: With Bypass and Breaker AIC Rating 18k, 35k, 65k OR W/O Bypass and Breaker AIC Rating 22k.
FREE GROUND SHIPPING
*If you wish to use your companies shipping account OR if you need expedited freight OR couriered service, please call us to place your order. EStore is setup for US orders only.
The interior is outfitted with a Altivar 320 Variable Frequency Drive VFD from Schneider Electric - Square D offers a powerful combination of safety, reliability and simplicity with numerous out-of-the-box features for building more effective machines. With the booming demands from industrial users emerging from the digitization of their manufacturing process, OEMs need versatile industrial solutions which can be easily integrated into hybrid automation systems. The Altivar 320 provides reliable control for asynchronous and synchronous motors delivering leading-edge performance with simple commissioning.
FEATURE and BENEFITS of Internal Altivar 320 - 20HP Square D drive - ATV320D15N4C:
BACnet/IP and MS/TP, Modbus TCP, Modbus Remote Terminal Unit (RTU), Johnson Controls SA bus on board every drive (no option cards)
Standard conformal coating on power and control boards
Integrated common mode reduction 5% DC link choke with input surge protection
Real-time clock to support calendaring and programmable logic controller (PLC) functionality
Standard Input/Output (I/O): 8 digital inputs (DI), 1 digital output (DO), 2 analog inputs (AI), 2 analog outputs (AO), 2 form C relays (FC), 1 form A relays (FA)
Multi-color pilot light is optional on bypass and standard on disconnect models
Redundant Auto, Run and Fault LEDs located to replicate keypad LEDs in the event the keypad is removed
Active energy control to minimize energy losses in the motor, resulting in industry-leading energy efficiency for your application
Power the control logic from an external auxiliary control panel for internal drive functions and fieldbus if necessary
**Industrial Panel Company and Southland Automation are not Authorized Distributors of Schneider Electric.
