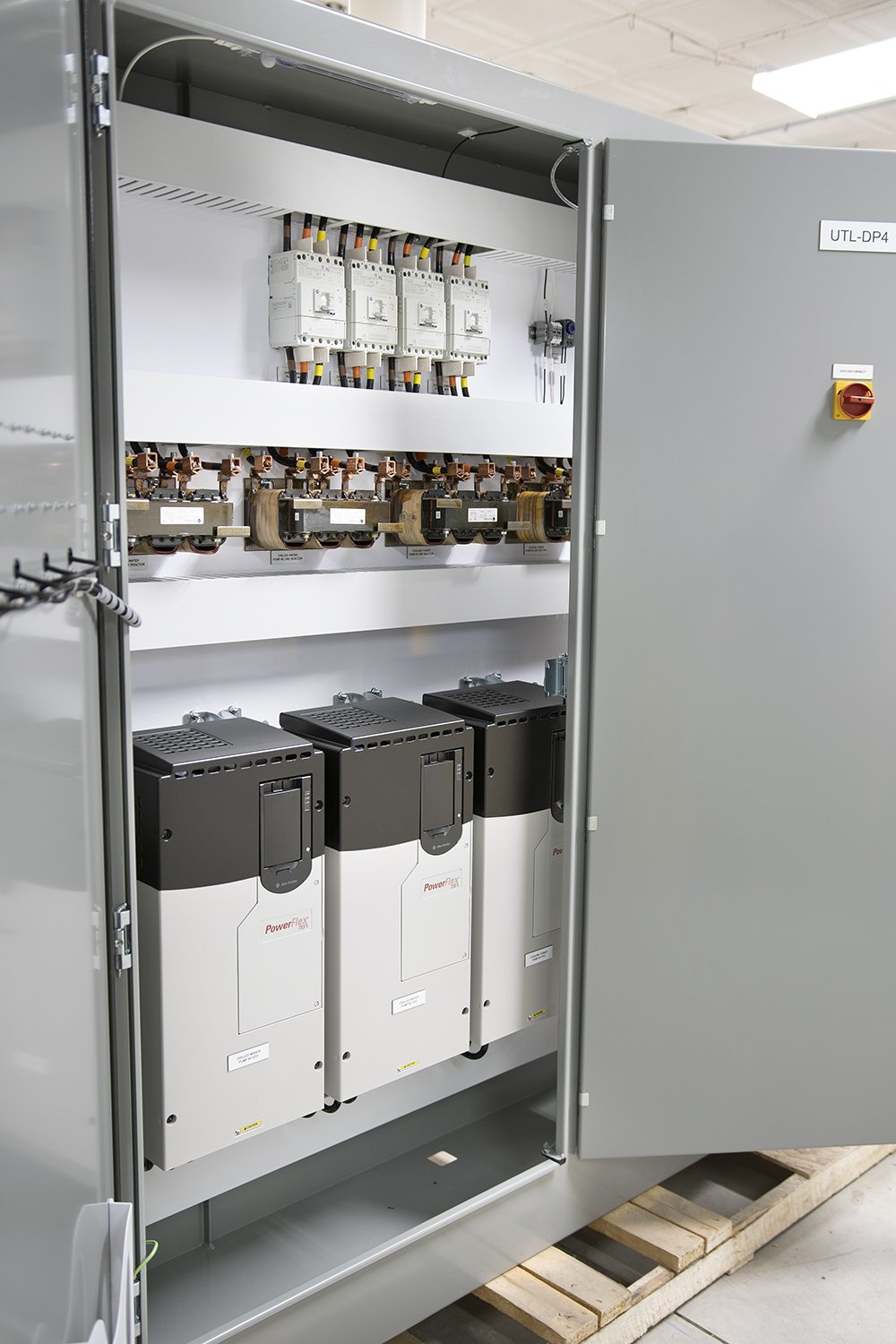

VFD Control Panel Enclosures for a customer, each setup with different configurations of drives and options. Separate external controls on front door for Allen-Bradley PowerFlex 755 Series #VFD drives. Some other highlights on electrical components on the inside...Allen Bradley Line Input/Line Output 130A Reactors, Allen-Bradley 3 pole unit Instantaneous Trip Circuit Breakers, Four cross draft SCE cooling fans and much more.

Industrial Panel Company - Burlington NC - Custom UL 508 A Large Industrial Electrical Enclosures.jpg
Industrial Panel Company - Burlington NC - Custom UL508A Enclosures - VFD Control Panel.jpg
Industrial Panel Company - Burlington NC - Custom UL508A Enclosure - Main Power Switch.jpg
Industrial-Panel-Company---Burlington-NC---Custom-UL-508-A-Large-Enclosures---Allen-Bradley-VFD-Remote-Controls.jpg
Industrial Panel Company - Burlington NC - Custom UL 508 A Large Enclosures - Allen Bradley PowerFlex 755.jpg
